Pumps for demanding industries
Serie ANAC - Pulp & Paper Pump
SACP single-stage centrifugal pumps combine high efficiency, outstanding wear resistance, and reliable performance for demanding industrial applications. Designed to handle clean, contaminated, and solids-containing liquids, they provide low maintenance, long service life, and maximum uptime across a wide range of industries.
For ech application there is an the impeller design that handle fluids with solids up to 8% consistency . The integrated degassing system removes gas while returning fibers to the pump, ensuring reliable performance across pulp & paper, mining, power or chemical applications.
- Impeler: Open
- Consistency: up to 8%
- Head: up to 190 m - 623 ft
- Flow : up to 9,000 m³/h - 39,625 USgpm
- Pressure: up to 83 bar - 1,204 psi
- Temperature: up to 200°C - 392 °F

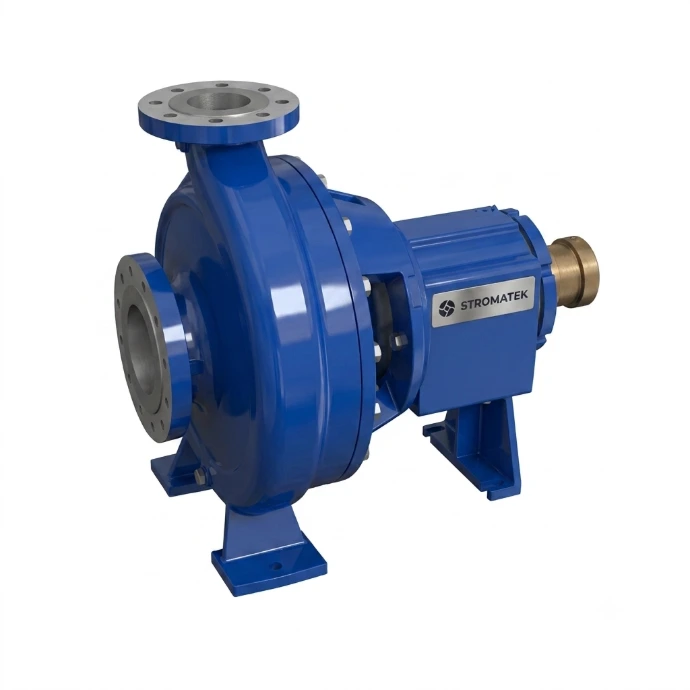

Serie ANAS - Pulp & Paper Pump
The STOS series delivers outstanding durability and wear resistance. These pumps are engineered to maximize efficiency and cost-effectiveness while ensuring hassle-free maintenance. Built on a modular design with standardized, time-tested components to ensure high operational availability and seamless part replacement
- Impeler: Open
- Consistency: up to 6%
- Head: up to 140 m - 459 ft
- Flow : up to 4.000 m³/h - 17,611 USgpm
- Pressure: up to 16 bar - 232 psi
- Temperature: up to 140°C - 284°F

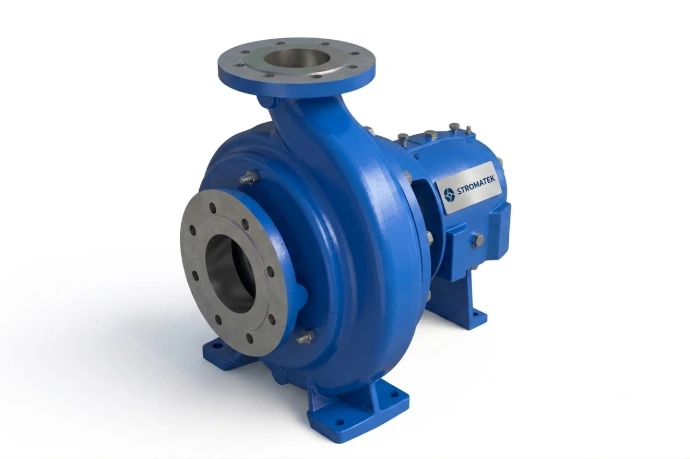

Serie SA - Heavy Duty Process Pump
SLAS Series is the eveloped version of the SLAP series. End-Suction single stage centrifugal process pumps with improved efficiency for a better energy consumption and low life-cycle costs.
- Impeler: Open / Close
- Consistency: up to 6%
- Head: up to 160 m - 525 ft
- Flow : up to 11.000 m³/h - 48’400 USgpm
- Pressure: up to 16/25 bar - 230/360 psi
- Temperature: up to 180°C - 356°F
Serie SAP - Heavy Duty Process Pump
Designed for demanding industrial applications, SLAP End cuction single stage centrifugal process pumps provide exceptional reliability, high efficiency, and low life-cycle costs.
Availabe with different impeller types for differen applications.
- Impeler: Open / Close / Low-Flow High-Head / Non-Clog / Vortex
- Head: up to 160 m - 525 ft
- Flow : up to 9.000 m³/h - 39’600 USgpm
- Pressure: up to 16/25 bar - 230/360 psi
- Temperature: up to 180°C - 356°F

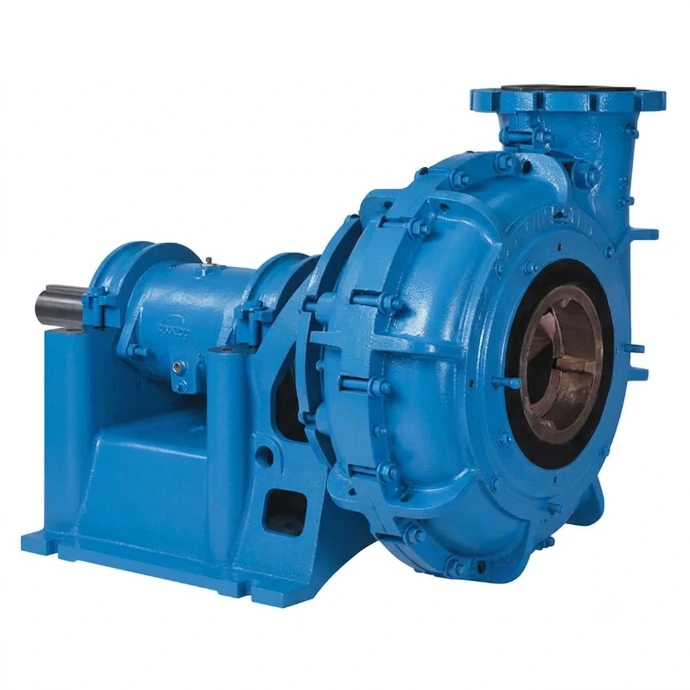

Serie WAH - Heavy Duty Slurry Pump
Designed to handle the most demanding abrasive and high-density slurries, this slurry pump offers exceptional performance, long service life, and high efficiency. It is engineered for continuous operation in severe applications such as mining, mineral processing, power generation, and heavy industrial dewatering
- Impeler: Open / Closed
- Head: up to 42 m
- Flow : up to 1.062 m³/h
- Solids diam : max 20 mm
- Slurry: 3.2 SG
- Solid: 6.8 SG
The fabrication process
Engineering
The right enginnering design and the drawing of the parts ensure an exact assembly in the pump.
Foundry
The duration of a part in production depends on its mechanical properties. An exact components recept of the material is key for its success.
Fabrication
Once the metal is melted it is necesary to machine the parts according to the drawings, and ensure a right balancing of the rotating parts.
Quality control
Dimensional control and material testing ensure that the parts are properly fabricated and ready for production.
